Site Dialer for T/Mon

Rating Average user rating: 4.5 out of 5 stars based on 11 reviews from the install base.

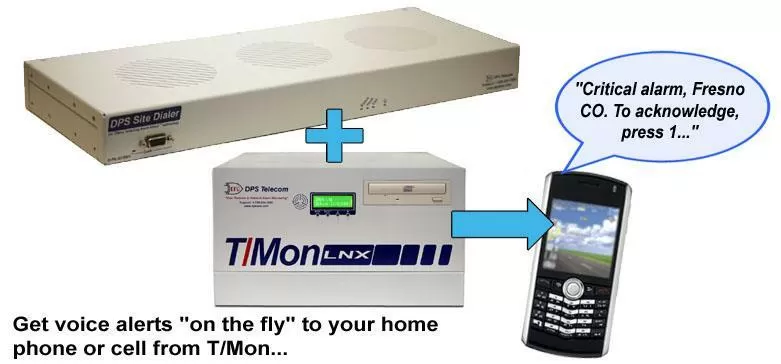

Voice Notification to Your Cell or Home Phone
When combined with the T/Mon LNX, the DPS Site Dialer delivers another critical method of receiving alarm notifications. This application allows you to receive these voice alerts for the alarm points you already have databased in T/Mon LNX. You can assign voice notifications for a few specific alarm points, or for a range of points for an entire site.

Site Dialer for T/Mon
The DPS Site Dialer for T/Mon adds voice notifications "on the fly" for your T/Mon LNX alarm master.

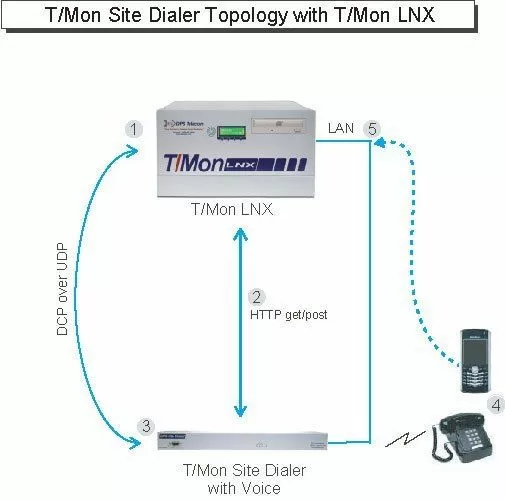

T/Mon LNX and SiteDialer example

Maximize Your T/Mon LNX with the Site Dialer. Here's how it works:

  1. Notifies users via T/Mon paging queue by controlling Site Dialer via TCP
  2. Creates voice message and sends it to Site Dialer via HTTP post
  3. Dials home phone or cell and plays message
  4. User hears message and acknowledges it via DTMF input
  5. User's initials are recorded to master's history and escalation stops

For information on using the SiteDialer with T/Mon NOC, click here.

Site Dialer for T/Mon
The DPS Site Dialer adds voice notifications "on the fly" for your T/Mon NOC alarm master.

Full Specifications
Dimensions: 1.72" H x 17.0" W x 6.64" D
Weight: 2.6 lbs
Mounting: 19" or 23" rack or wall mount
Power Input: -48VDC
Fuse: Dual 1/2 Amp GMT Fuses
Interfaces: 1 RJ45 10BaseT Ethernet port
1 DB9 front-panel craft port
1 RJ-11 Telco jack
Visual Interface: 5 Front Panel LED 5 Back Panel LEDs
RoHS: 5 of 6
Operating Temperature: 32 - 140 F (0 - 60 C)
Operating Humidity: 0%-95% non-condensing

Voice Notification to Your Cell or Home Phone
When combined with the T/Mon NOC and T/Mon EXP (expansion), the DPS Site Dialer delivers another critical method of receiving alarm notifications. This application allows you to receive these voice alerts for the alarm points you already have databased in T/Mon NOC. You can assign voice notifications for a few specific alarm points, or for a range of points for an entire site.

Site Dialer for T/Mon
The DPS Site Dialer adds voice notifications "on the fly" for your T/Mon NOC alarm master.

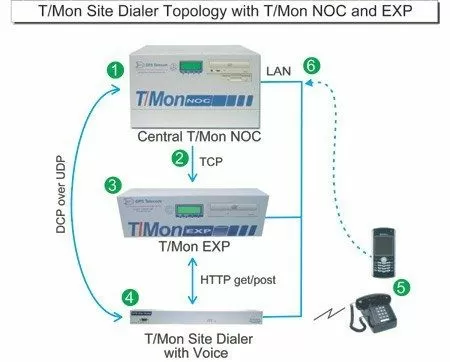

Maximize Your T/Mon with this Site Dialer and the EXP expansion chassis. Here's how it works:

T/Mon Site Dialer
  1. Notifies users via T/Mon paging queue by controlling Site Dialer via TCP
  2. Transfers alarm info to EXP via TCP message
  3. Creates voice message and sends it to Site Dialer via HTTP post
  4. Dials home phone or cell and plays message
  5. User hears message and acknowledges it via DTMF input
  6. User's initials are recorded to master's history and escalation stops
